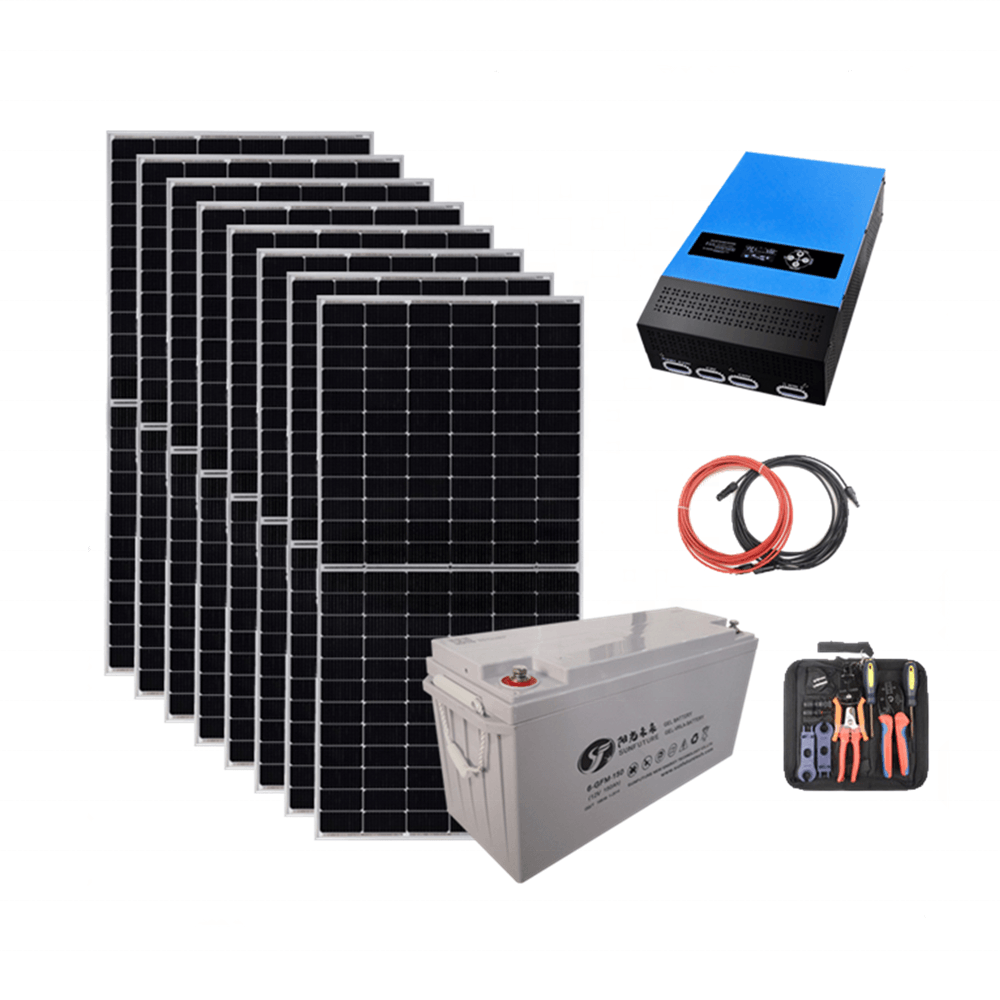

Sunfuture 1000W Solar Panel and Controller Kit
Sunfuture 1000W Solar Panel and Controller Kit
This Sunfuture 1000W off-grid solar power system delivers stable, independent electricity through a pure sine wave inverter paired with a low-frequency toroidal transformer that minimizes energy loss. Designed for households, commercial offices, and telecommunications setups, this wall-mounted unit switches between DC, AC, and ECO modes while maintaining a conversion time under four milliseconds. With adjustable 0–30 A charging, it reliably manages 12 V, 24 V, or 48 V batteries and integrates directly with auxiliary diesel or gasoline generators.
Operation stays straightforward thanks to automatic fault tracking, comprehensive electrical protections, and silent fan cooling kept below 55 dB across a −10 °C to 40 °C range. This compact 550 × 243 × 175 mm, 11 kg unit handles up to 1000 W continuous load and accepts solar inputs scaling from 280 W to 1680 W depending on bank voltage. Optional serial communication enables remote system oversight for reliable residential energy independence.
📋 Product summary:
- Pure sine wave output with ≤4 ms transfer time
- Low-frequency toroidal transformer reduces thermal loss
- Compatible with 12 V, 24 V, or 48 V storage banks
- Adjustable AC charge current from 0 to 30 A
- Wall-mounted chassis weighing 11 kg net
- Integrated LCD screen with real-time fault diagnostics
|
Model LW- |
10212/24 |
20212/24/48 |
30224/48 |
40224/48 |
50248 |
60248 |
||
|
Rated power |
1000w |
2000w |
3000w |
4000w |
5000w |
6000w |
||
|
Battery |
Rated voltage |
12/24V |
12/24/48V |
24/48V |
24/48V |
48V |
48V |
|
|
Charge current |
30A(Default)-C0~C6 |
|||||||
|
Input |
voltage range |
85-138VAC / 93-150VAC / 170-275VAC / 186-300VAC |
||||||
|
Frequency |
45-65Hz |
|||||||
|
Output |
Voltage range |
Inverter Output:110VAC / 115VAC/120VAC / 220VAC / 230VAC / 240VAC±2% Mains Output:110VAC /115VAC/ 120VAC / 220VAC / 230VAC / 240VAC±10% |
||||||
|
Frequency |
Inverter Output: 50/60HZ±1%; Mains Output: Automatic track |
|||||||
|
Efficiency |
≥85% (80% Resistive load) |
|||||||
|
Output waveform |
Pure sine wave |
|||||||
|
Conversion time |
≤4ms(Typical load) |
|||||||
|
Mode |
DC Mode / AC Mode / ECO Mode |
|||||||
|
Display |
LCD |
|||||||
|
Communication |
RS232/RS485(Optional) |
|||||||
|
Cooling method |
Temperature control fan cooling |
|||||||
|
Protection |
Overload / overcurrent / short circuit / over temperature |
|||||||
|
Temperature |
-10℃-40℃ |
|||||||
|
Noise |
≤55dB |
|||||||
|
Machine size: L x W x H |
550*243*175 |
570*261*199 |
||||||
|
Package Size: L x W x H |
605*305*270 |
625*320*295 |
||||||
|
Net weight |
11 |
19 |
20.5 |
22 |
24 |
26 |
||
|
Gross weight |
12.5 |
20.5 |
22 |
24 |
26 |
28 |
||
|
LW-T series built-in PWM controller |
||||||||
|
Rated current |
20A/30A/40A/50A/60A |
|||||||
|
Input voltage range |
12V: 15-50VDC; 24V:30-50VDC; 48V:60-100VDC |
|||||||
|
Maximum input power |
20A:(12V:280w; 24V:560w;) 30A:(12V:420w; 24V:840w; 48V:1680W) 40A:(12V:560w; 24V:1120w; 48V:2240W) 50A:(12V:700w; 24V:1400w; 48V:2800W) 60A:( 24V:1680w; 48V:3360W) |
|||||||
