SLD03 Dotless 5mm Super Slim Edgeless Single Color Linear LED Strip Lights Low Voltage FCOB DC 12V/24V Tape Light

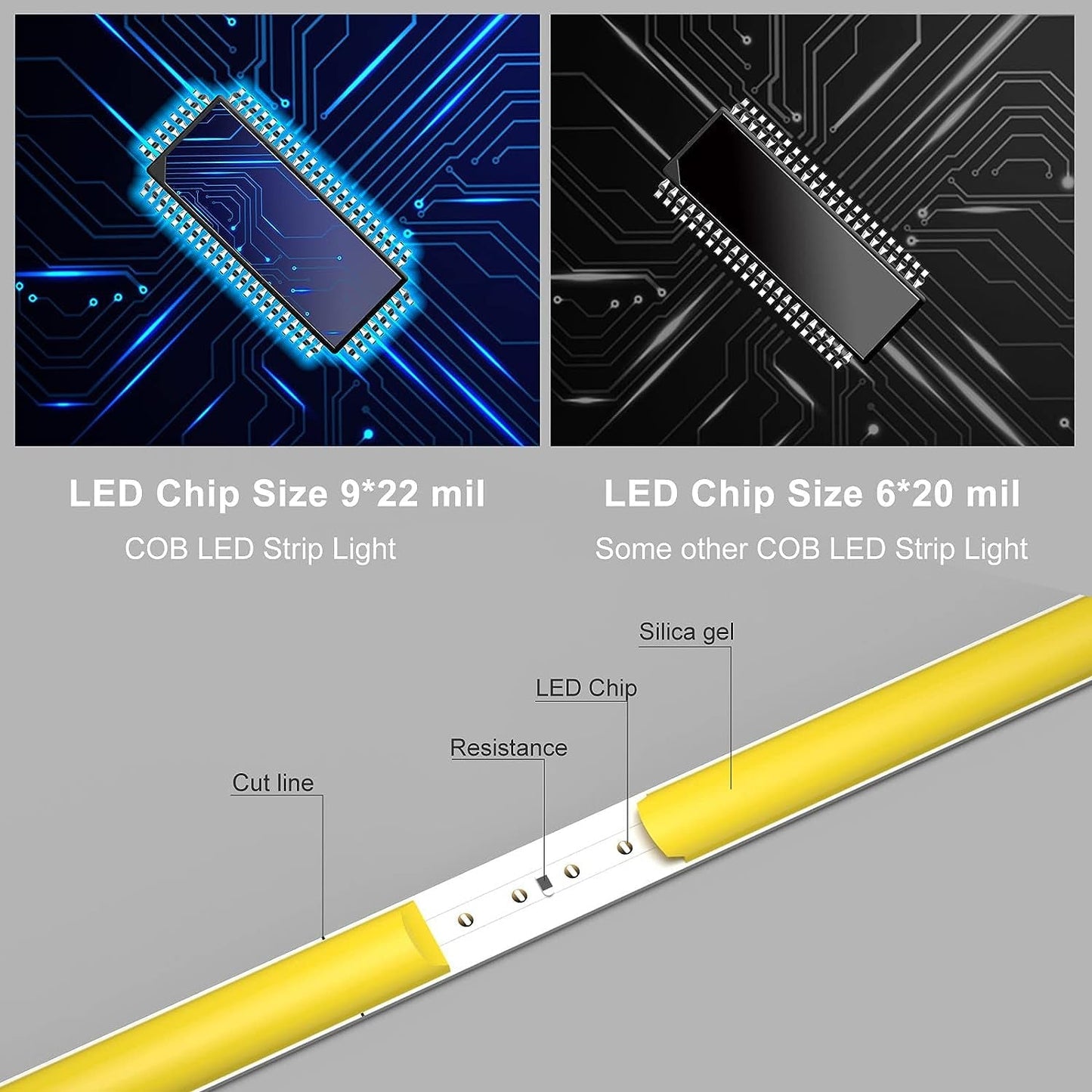

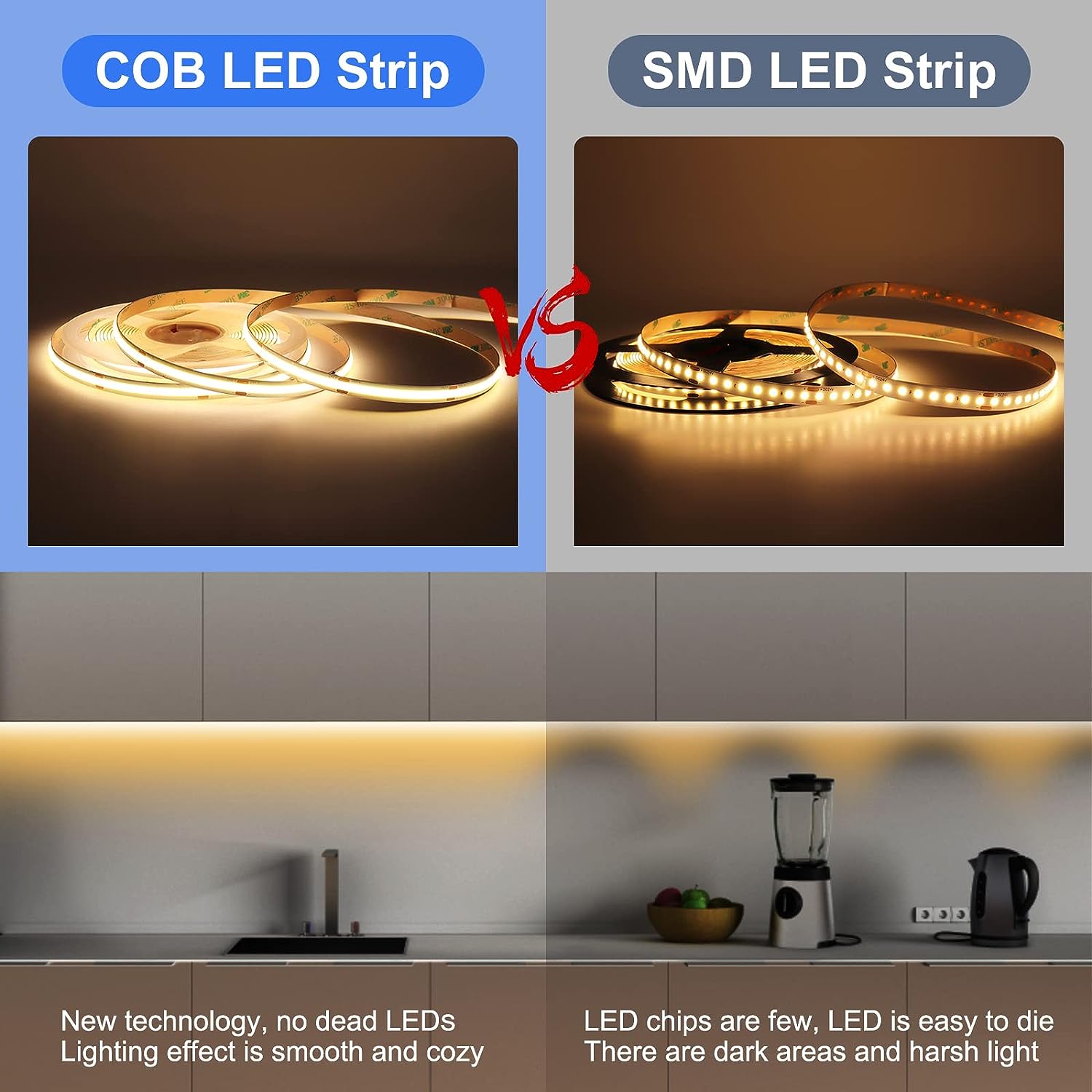

Our new 5mm Super Slim Dotless COB LED Strip Light uses the new FCOB technology to produce seamless linear lighting with no hot spots or "dead spots" and is completely edgeless. On traditional LED strips, LED diodes are spaced apart creating hot spots that are visible when looking at the strip, but our Dotless LED strips give a consistent light throughout the entire length.

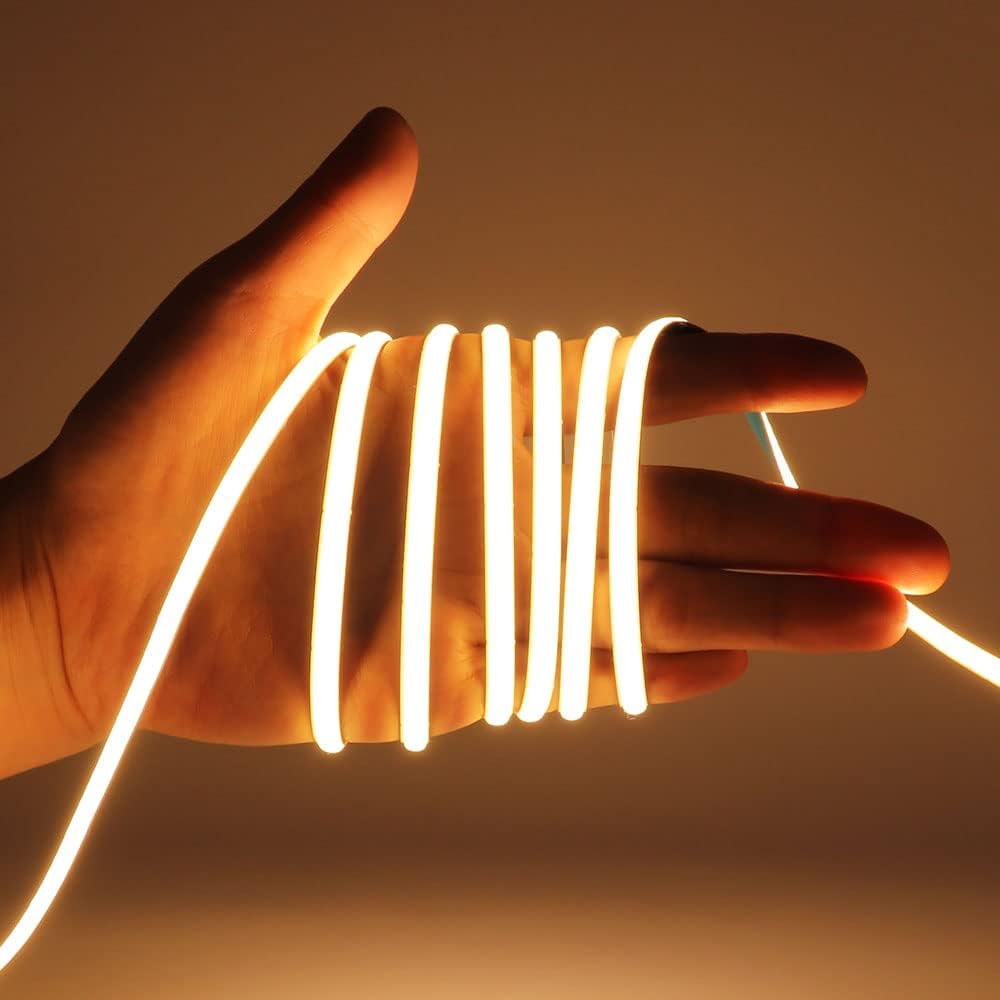

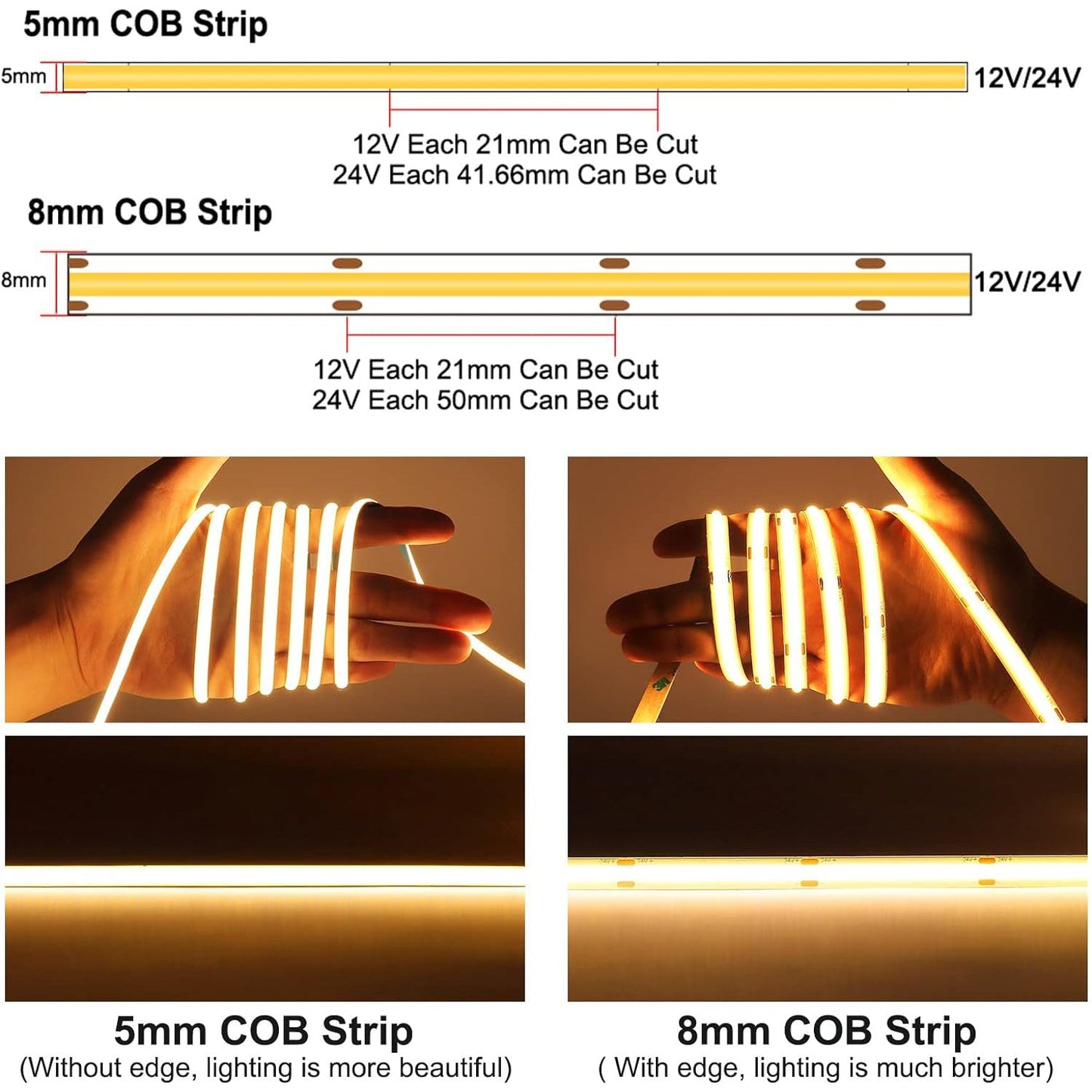

This Ultra Thin continuous LED strip light can be cut every 21mm for 12V and 42mm for 24V, allowing you to cut pieces to the exact length that you need based on your application. Our DC LED strip light consumes 3W per ft and shines 330 lumens per ft with 384 LEDs/m. Its size is 5 mm wide, allowing it to fit in most standard aluminum channels. Available in 5M (16.4 ft) Lengths.

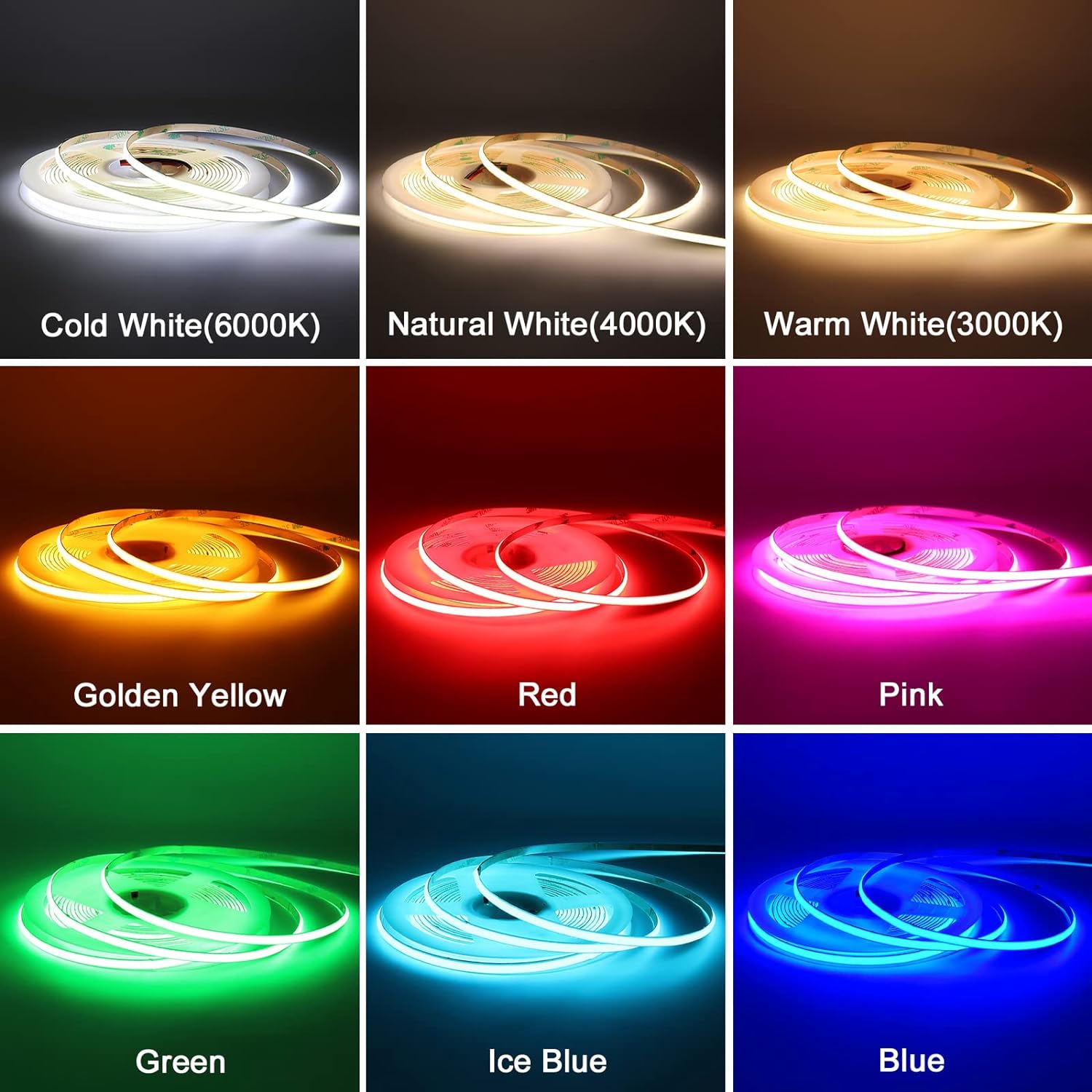

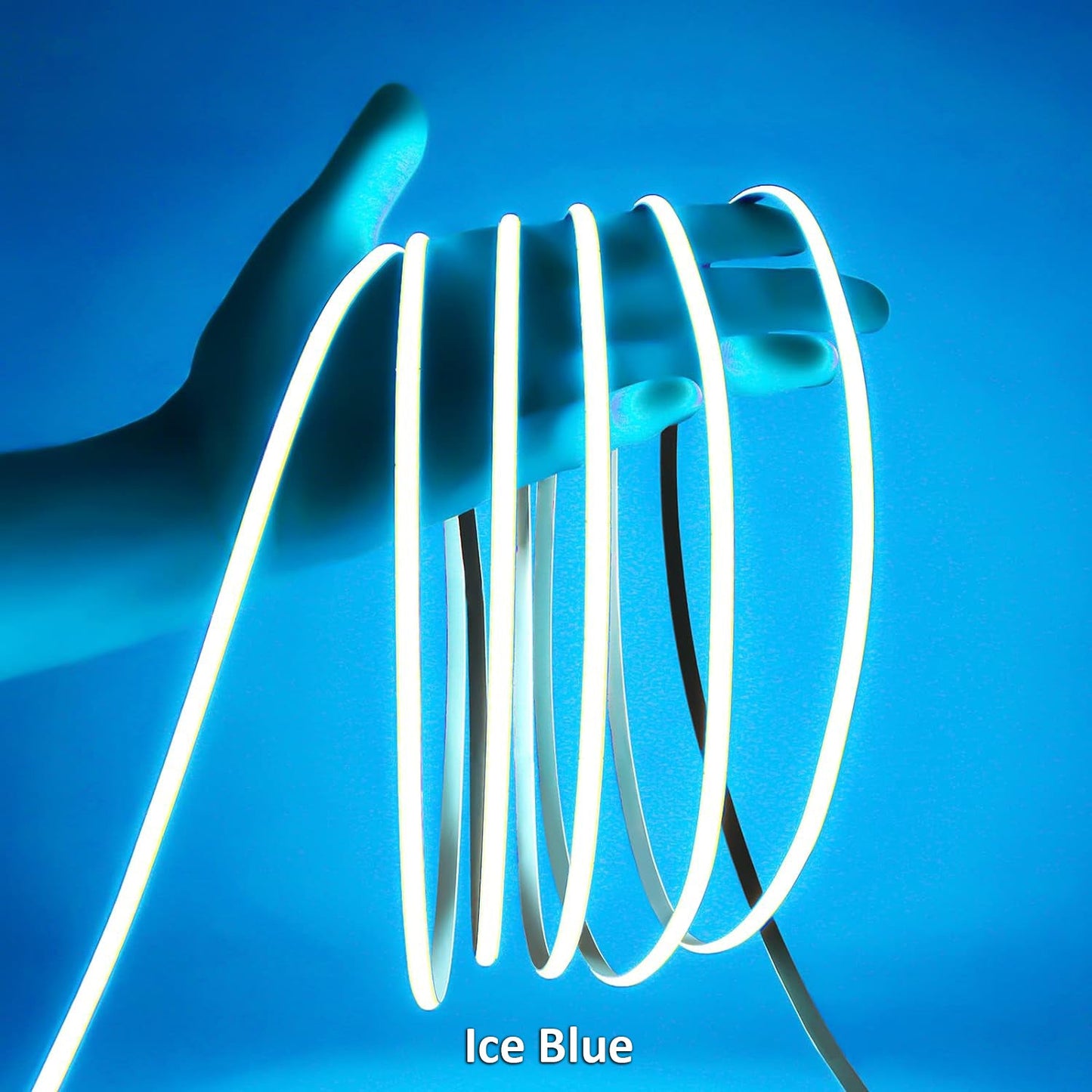

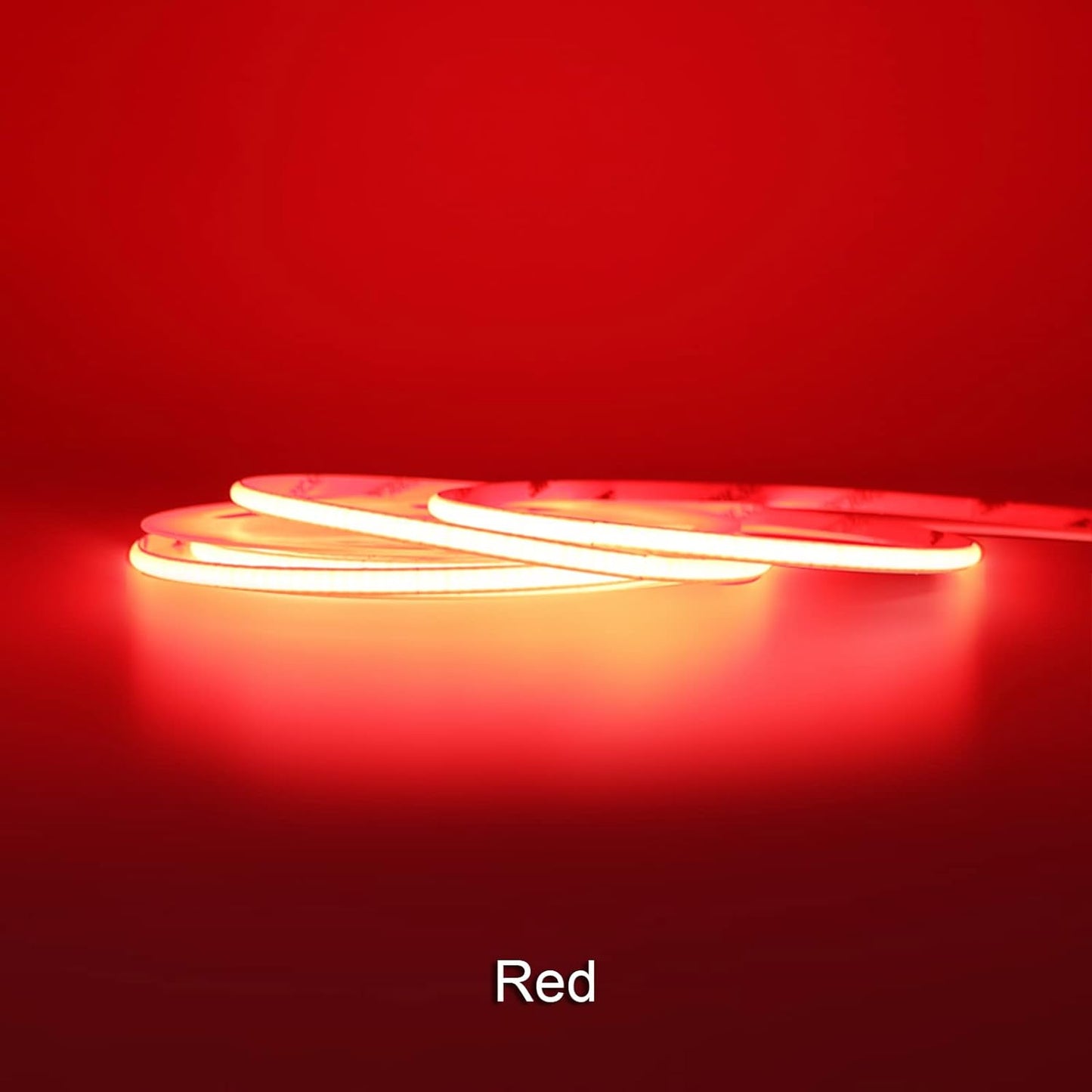

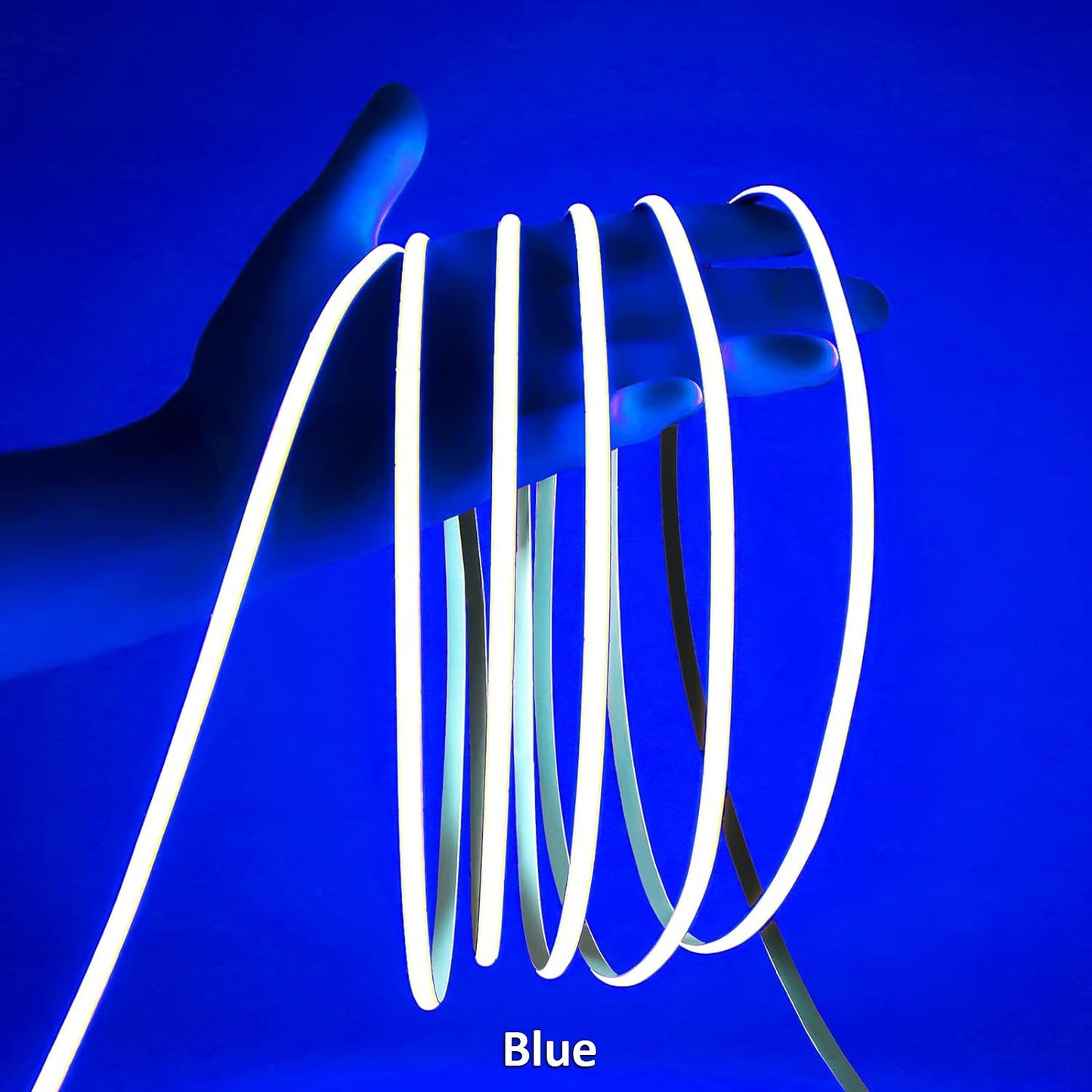

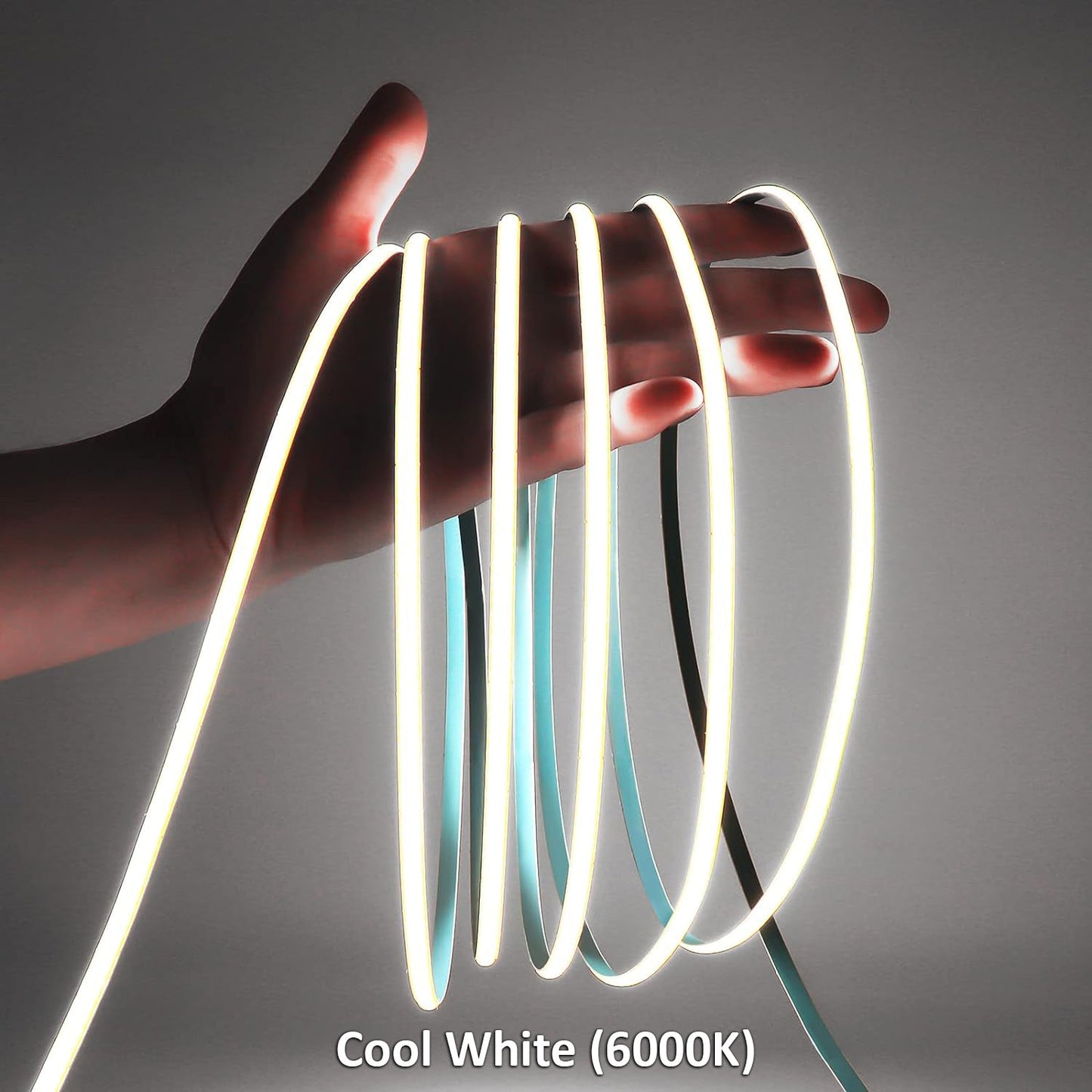

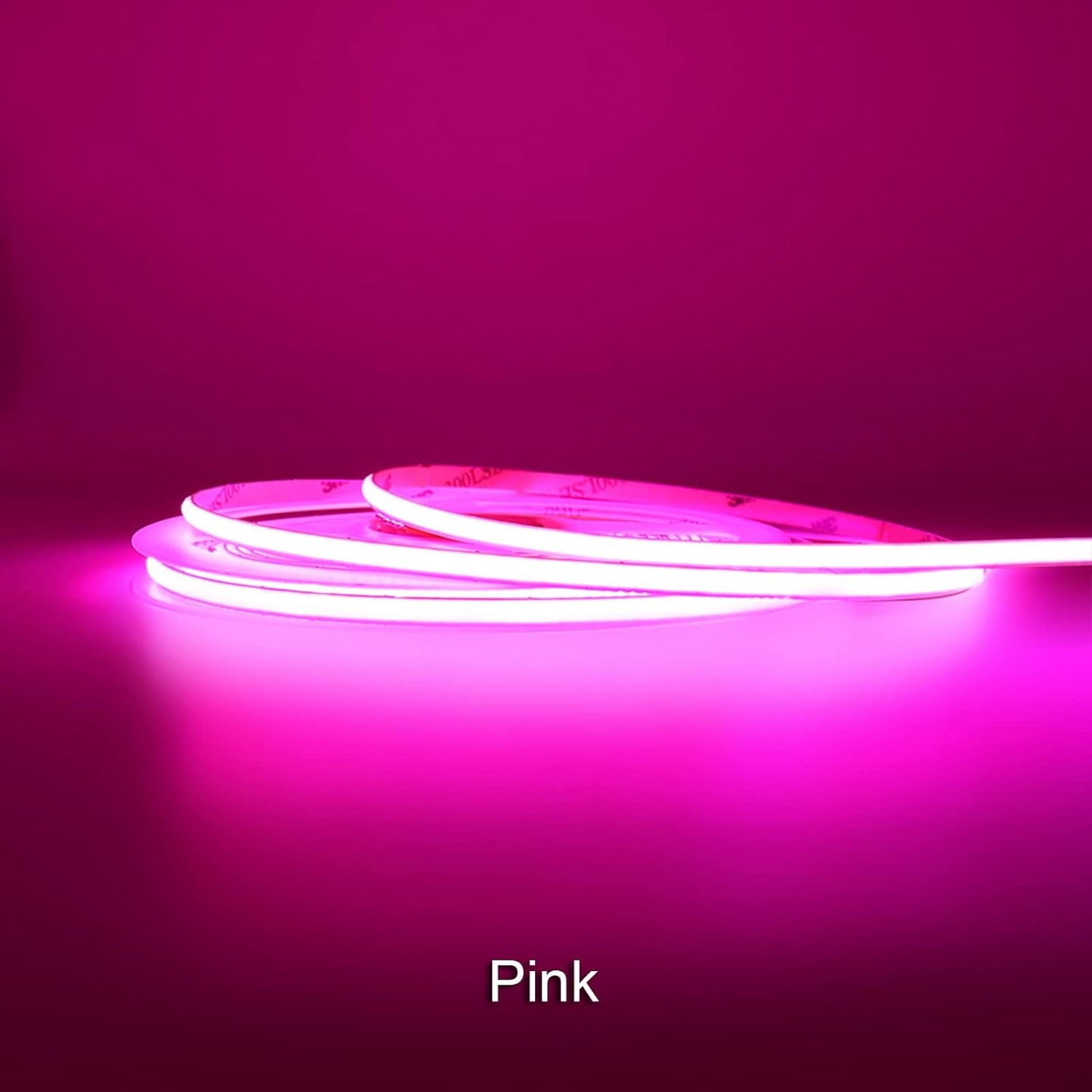

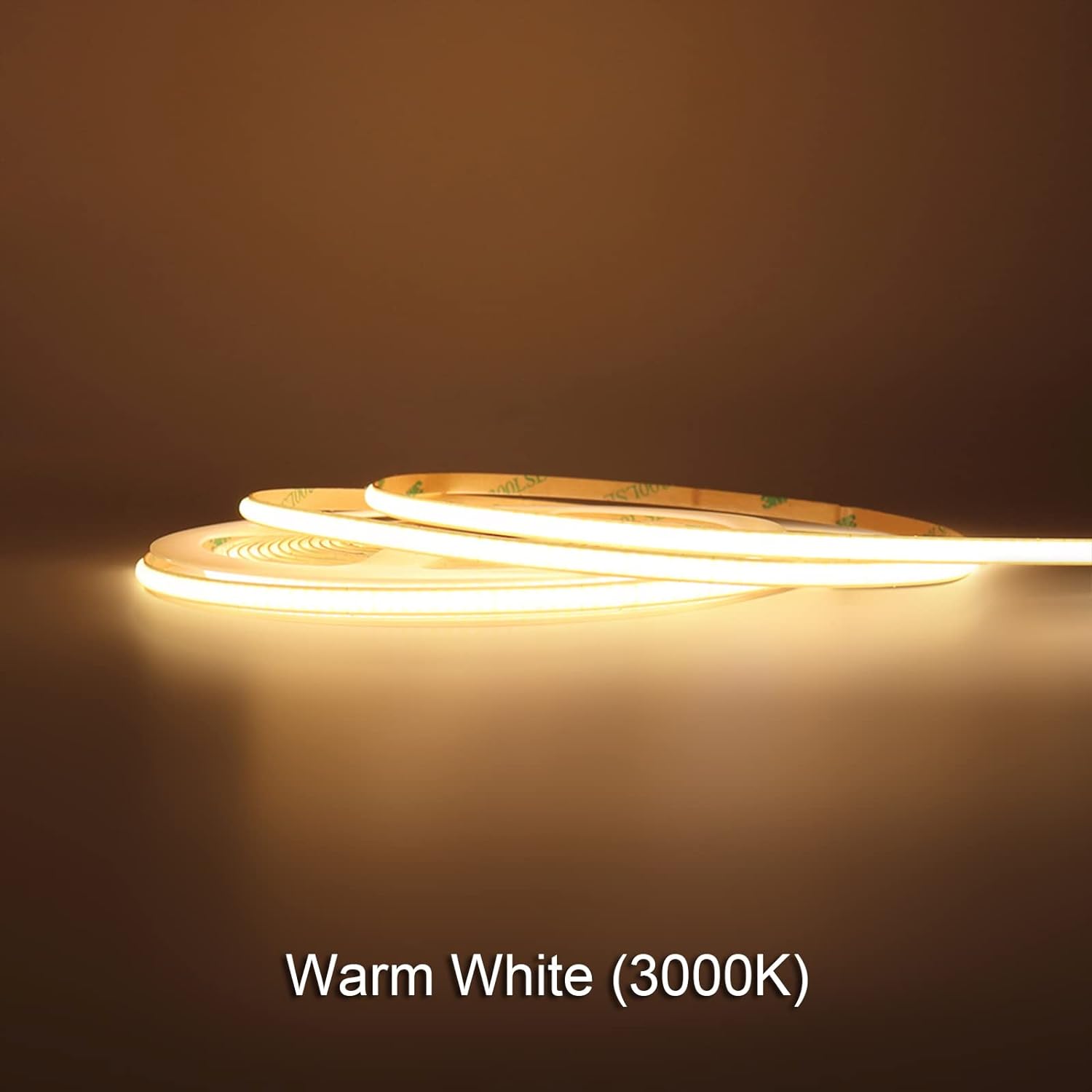

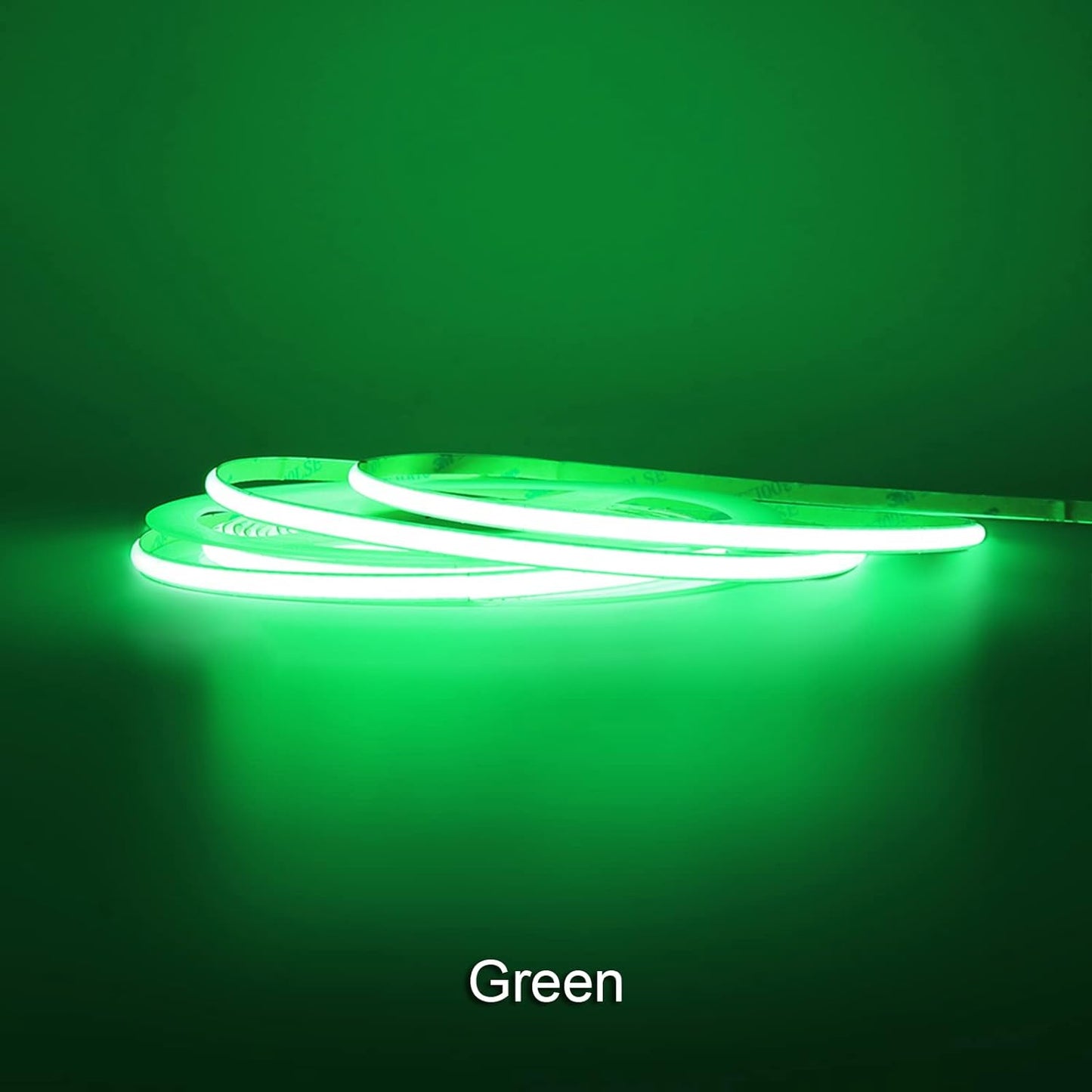

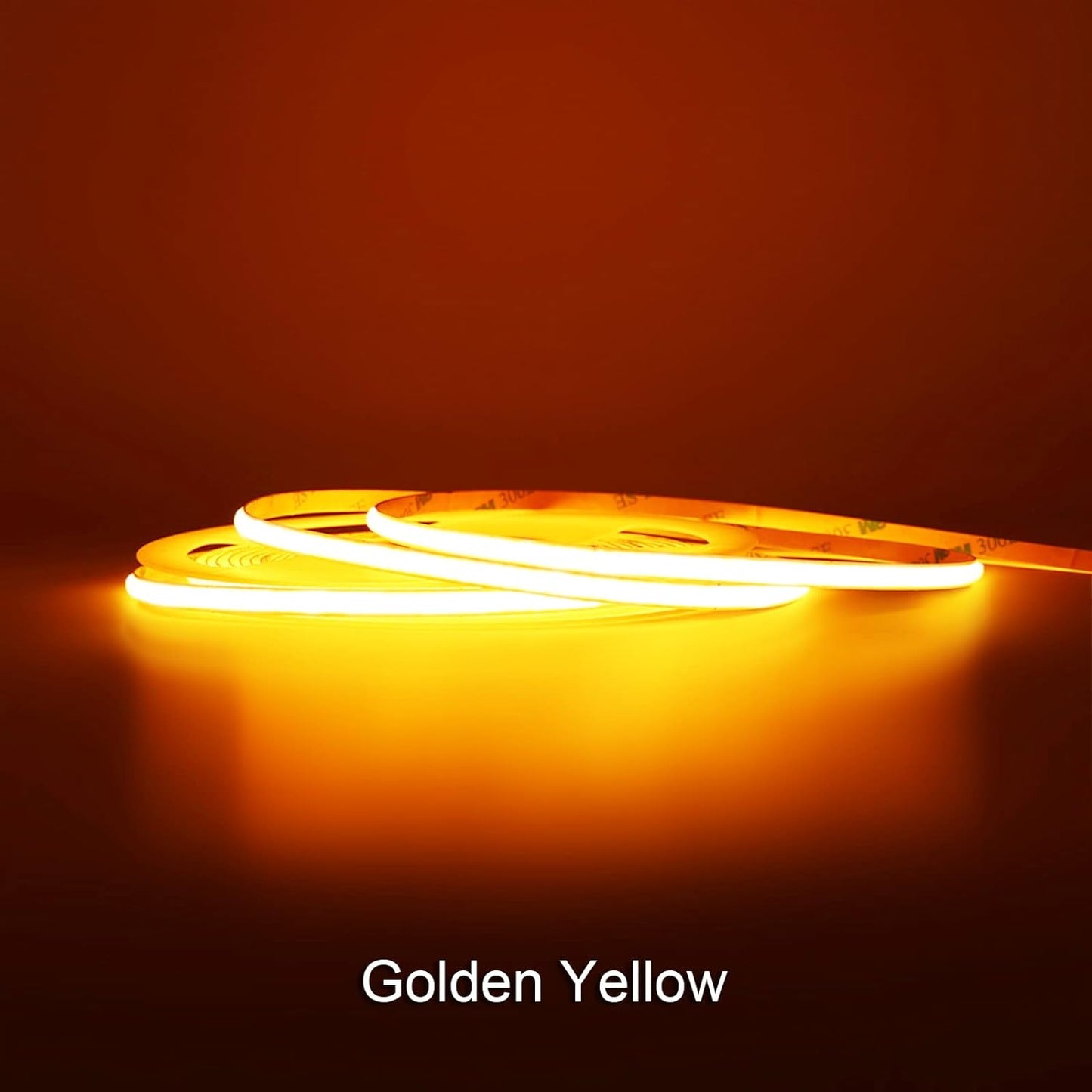

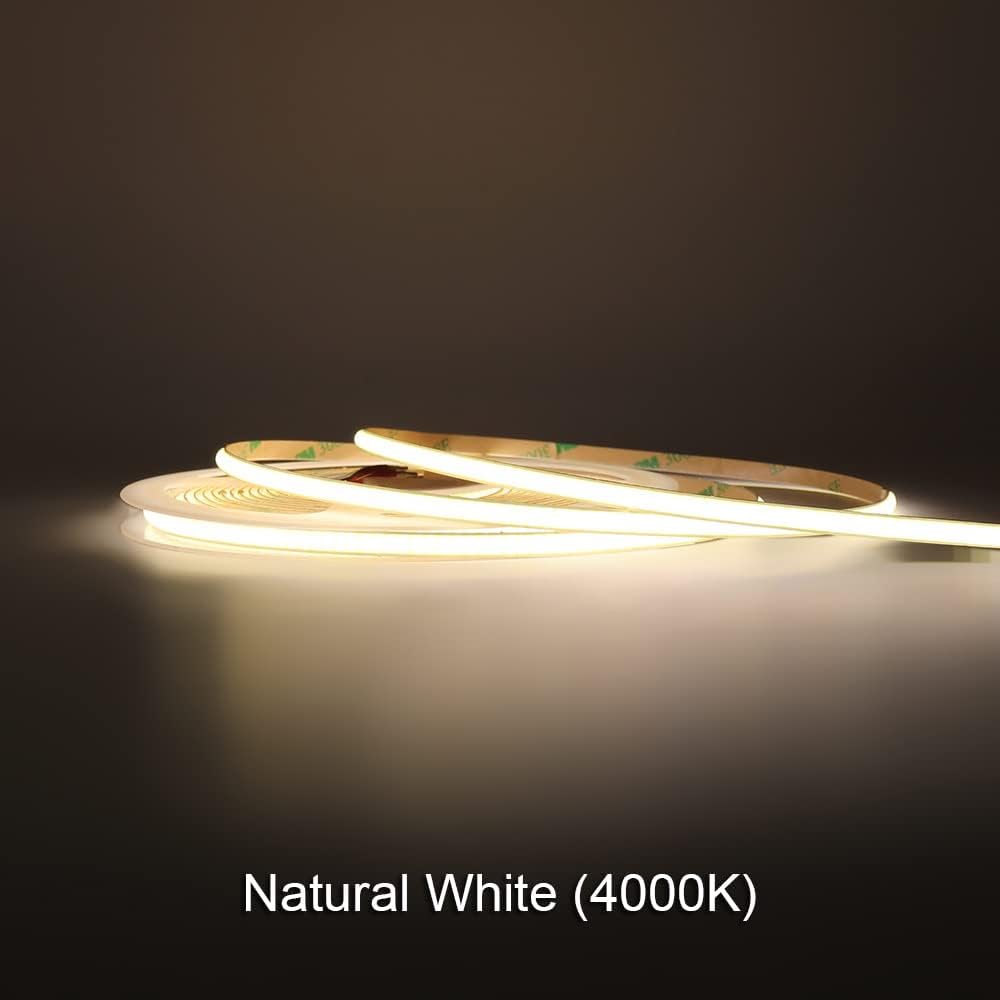

This low voltage Dotless LED strip light is available in 3000K Warm White, 4000K Natural White, 6000K Cool White, Red, Golden Yellow, Green, Pink, Blue, and Ice Blue Colors and illuminates at 90 CRI. This strip light is a suitable choice for a variety of applications including kitchen cabinet, closets, edges and stairs, balcony, party decoration, wedding etc and is Indoor Rated at IP30.

How to choose right power supply?

1. 1. The COB strip is around 10W/m, so for 5m (16.4FT) LED strip, it needs a 50W power supply. The power supply can be bigger (60W, 100W, 200W are all ok), but can't be smaller, if the power supp is too small, the led strip will flash during working.
2. 2. Since there's voltage drop of the led strip, the real working power is much less than theoretical value. So it's ok that the power supply is a little smaller than the counted value.
3. 3. Recommended power supply (Linked Below):
   12V 16.4FT => 12V 5A adapter (or 12V 60W transformer)
   24V 16.4FT => 24V 3A adapter (or 24V 60W transformer)

 ** 12V/24V DC Low Voltage Transformer Required! **

IMPORTANT NOTICE

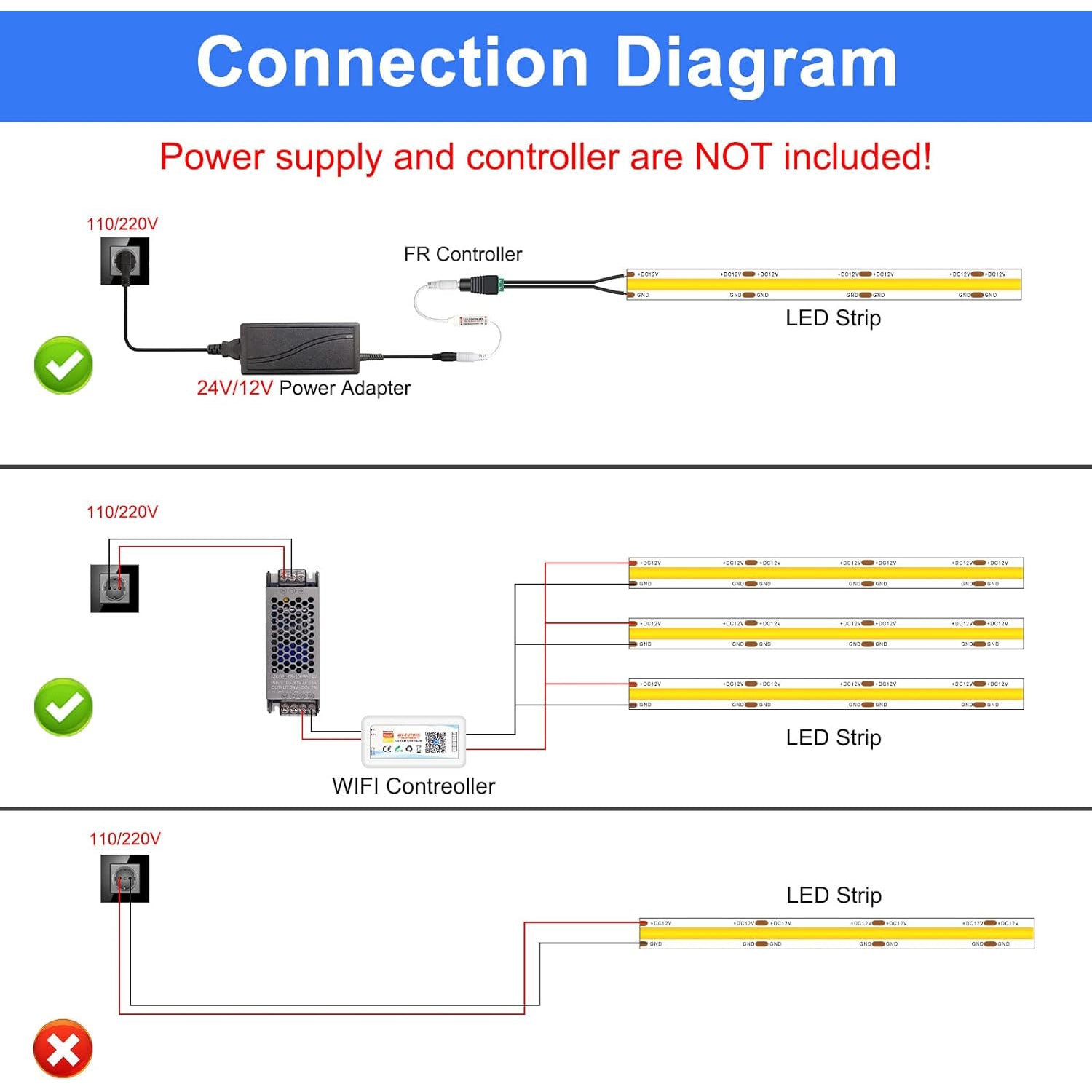

1. The COB LED strip CAN NOT be connected to AC110V directly, must add a DC 12V/24V power supply.
2. The AC/DC transformer (power supply) and controller NOT included.
3. The COB strip is dimmable but need to add a suitable dimmer. Dimmer is NOT included.
4. The COB strip is jointed by 19.6IN-length pieces, so there are some jointed pointes on the COB strip, it's normal.
5. The actual power of the COB strip will be affected by the voltage drop. For example, the real using power of 16FT strip is around 30W, not 10W/mx5m= 50W (theoretical value). The calculation method of 50W is wrong, the voltage drop should be actually considered!
6. Please make sure the installing surface is clean + dry + smooth, or the COB strip cannot be pasted stably.
7. There will be Voltage Drop (the head of the led strip is brighter than the end) if the COB strip is too long. If you want to extend the COB strip to longer length (like 32.8FT or more), need to supply power to both ends of led strip.
